Dough Moulding

What is Dough Moulding?

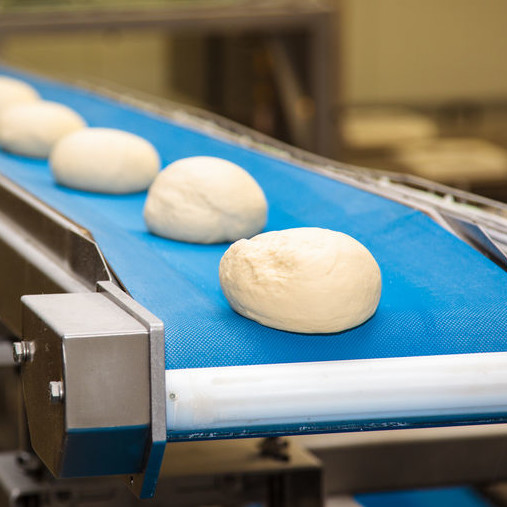

Dough moulding is the final step of the makeup stage in high-speed production of pan or loaf-type bread. It is a continuous mode operation, always receiving dough pieces from the intermediate proofer and placing them into pans.

The function of moulding is to shape the dough piece, according to the bread variety being produced, so that it properly fits into pans. Dough moulding equipment can be set to achieve the desired shape with a minimum amount of stress and strain on the dough.1

How does it work?

Dough moulding is carried out by specialized equipment called moulders. A bread moulder has two basic components: a sheeter and a final moulder (dough former). These components influence the final shape and length of the dough pieces.

1. Sheeter

  • Coming from intermediate proofing, rounded dough pieces are sheeted or gradually flattened through a series of rollers in preparation for final moulding. The sheeter is usually comprised of 2–3 sets (in series) of Teflon-coated roller heads between which the dough piece is passed to gradually flatten the dough piece.
  • Sheeting applies stress forces (pressure) that help degas the dough piece so that large air cells developed during product transfer or intermediate proofing are reduced into smaller ones to achieve a fine grain in the finished product.
  • Roller sets are arranged in such a way that the gap/clearance is reduced gradually as the dough travels through them. This is critical to promote a controlled reduction of dough thickness. It would be impossible to flatten dough pieces in one single step without causing irreparable damage to the gluten and gas cell structure.
  • After passing through the top rollers, the dough piece becomes much thinner, larger, and oblong in shape. The flattened dough exiting the bottom rollers is ready to pass under the curling chain.

Lateral view of sheeting system for dough moulding in a bakery.

2. Final moulder

  • The thin, flat dough pieces taken from the sheeter are moulded or formed into tight, uniform cylinders of the proper shape and length.
  • The final moulder is, essentially, a forming conveyor which is equipped with 3 parts that define the product’s final dimensions.

Curling chain

As the dough piece exits the bottom head roller, it comes in contact with the curling chain. This causes the leading edge to slow down and begin curling back on itself. The weight of the curling chain begins the curling of the dough. Its length can be adjusted as needed.

When the dough piece exits the curling chain, it is completely rolled-up.

Pressure board and side guide bars

These parts give the dough piece its final loaf-type or cylinder shape by exerting downward/outward pressure and forcing the dough against side bars. This further de-gasses the dough pieces to form tight, uniform and sealed cylinders.

A cross section of the final moulder.

Application

Modern high-speed moulders have several variable speed drives for their different rollers and belts so that they can be fine-tuned for faster or slower production rates. There are two types of moulding equipment:1

  • Straight grain moulder
  • Cross grain moulder

Roller adjustments

Sheeting roll set is too open (gap too wide) Sheeting roll set is too tight (gap too narrow)
  • The dough sheets are thick and do not produce a sufficient number of curls per piece upon rolling (3–4 are suggested for white pan bread).
  • Blisters will occur on the surface of the moulded dough piece.
  • The finished product will have a coarse grain structure and the appearance or large holes in the crumb.
  • The dough pieces run the risk of tearing (too much stress or pressure).
  • Dough can become misshapen due to excessive strain.



Final moulder adjustments

Side guide rails and height of the pressure board of high-speed moulders can be adjusted to allow for a variety of dough piece sizes and lengths.

Side guide bars Pressure board
  • Set the length of the dough piece.
  • They should be set parallel to each other.
  • Distance between the rails is set to match the pan width.
  • The pressure board helps push the dough out toward the rails.
  • If set too low, the dough is squeezed out against the guides, creating a dumbbell-shaped dough piece. This ruptures the air cells in  the dough, resulting in irregular, dense grain structure through several slices on each end of the finished product.
  • If the pressure board is set too high, the seam will not form properly, and bursting along the weak seam may result during proofing and baking.



Roller, side guide bars and pressure board settings can be adjusted to accommodate different dough rheologies or handling properties and should be set prior to the start of each variety. For example, processing whole wheat bread may call for less tight equipment settings, this is due to the lack of elasticity of whole wheat doughs.

References

  1. Therdthai, N., and Zhou, W. “Manufacture.” Bakery Products Science and Technology, 2nd edition, John Wiley & Sons, Ltd, 2014, pp. 476–485.
